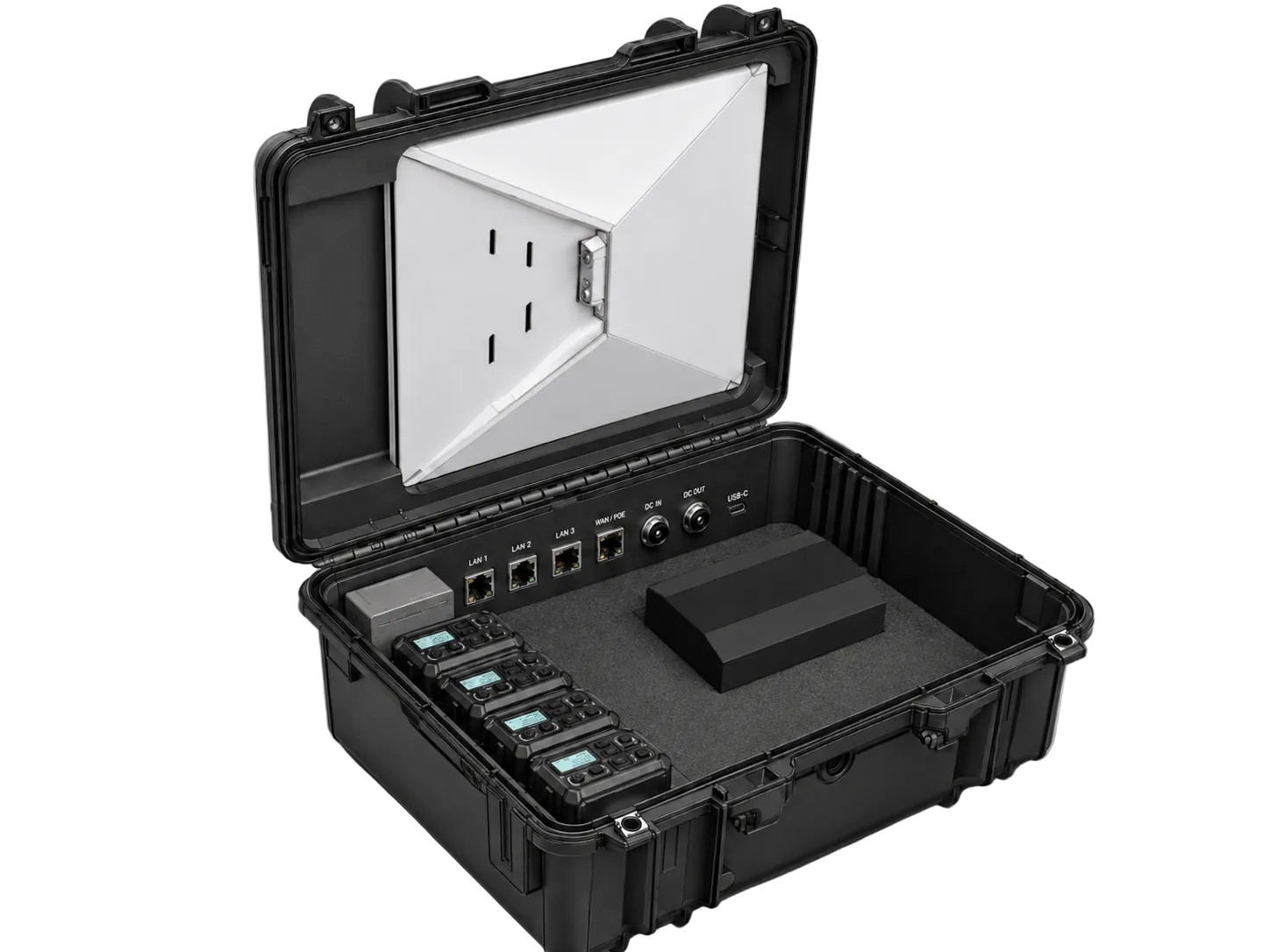

LinkPower Plus Multi-WAN - Starlink Peplink Case

The LinkPower Plus Multi-WAN is a rugged IP67 Starlink Peplink case designed to integrate a Starlink Mini antenna, Peplink BR1 Mini router, LNK-IMC005 5-port PoE switch and up to four Gravity 27 PRO power banks into one compact field connectivity platform.

With external LAN, PoE WAN, DC and USB-C interfaces, the complete communications setup can remain protected inside the case while connected equipment is accessed from the outside.

Starlink Mini, Peplink router, PoE switch and Gravity 27 PRO batteries are not included by default.

Key Features

• Designed for Starlink Mini + Peplink BR1 Mini Multi-WAN deployments
• Space for up to 4 × Gravity 27 PRO power banks
• Compatible with LNK-IMC005 5-port PoE switch
• 3 × external LAN ports
• 1 × external PoE WAN port
• 1 × DC5521 input
• 1 × DC5521 output
• 1 × USB-C pass-through port
• Rugged IP67 enclosure
• Equipment can remain protected inside the case during operation
• Modular architecture for telecom, industrial and mobile field deployments
• Compact external dimensions: 430 × 345 × 188 mm
• Empty case weight: 3.5 kg

Product Description

A Rugged Multi-WAN Platform for Starlink and Cellular Connectivity

The LinkPower Plus Multi-WAN is designed for professional users who need resilient Internet connectivity in remote, mobile or demanding environments.

The case provides a dedicated integration platform for both a Starlink Mini satellite terminal and a Peplink BR1 Mini cellular router, allowing both connectivity technologies to be combined within a single rugged system.

This makes the LinkPower Plus Multi-WAN particularly suitable for field operations where maintaining connectivity is critical and where relying on only one network technology may not be sufficient.

Depending on the Peplink configuration and connectivity services used, the system can form the basis of a Multi-WAN installation combining Starlink satellite Internet with cellular connectivity.

For other rugged satellite connectivity and power configurations, explore the complete Sunslice LinkPower range.

Designed Around the Peplink BR1 Mini

The internal layout accommodates a Peplink BR1 Mini, allowing cellular routing hardware to be installed directly alongside the Starlink Mini equipment.

For professional installations, this creates a compact Starlink Peplink case where satellite, cellular, networking and power components can be transported and deployed together.

The result is a cleaner installation with fewer independent cases, loose cables and separately deployed network components.

Up to Four Gravity 27 PRO Batteries

Compared with the more compact LinkPower Mini, the LinkPower Plus provides substantially more internal capacity for battery and networking hardware.

It can accommodate up to four Sunslice Gravity 27 PRO power banks, allowing users to configure the available battery capacity according to the required deployment duration.

This modular approach also makes it possible to adapt the system to different missions rather than relying on a permanently integrated battery.

The Gravity 27 PRO batteries are not included with the base case.

Integrated PoE Networking

The case is designed to accommodate the LNK-IMC005 5-port PoE switch, creating an integrated network distribution point directly inside the enclosure.

Three LAN connections are accessible externally, allowing wired network equipment to be connected without opening the case.

Typical connected equipment can include:

• Computers and workstations
• IP cameras
• Wi-Fi access points
• External routers
• Industrial controllers
• Monitoring equipment
• Network gateways
• Other Ethernet-compatible field devices

An additional PoE WAN port provides further flexibility for connecting compatible networking infrastructure.

Operate While Equipment Remains Protected

One of the main advantages of the LinkPower architecture is that the installed equipment does not need to be fully removed from the case for operation.

The LinkPower Plus Multi-WAN provides external interfaces for network and power connections while the main electronics remain installed inside the protected enclosure.

This reduces deployment time and protects the internal installation from handling, impact, dust and water exposure during field use.

External Connectivity

3 × LAN ports
Provide direct Ethernet access to the internal network.

1 × PoE WAN port
Provides an external WAN/network interface with PoE capability for compatible installations. Allows connection of the Starlink Mini outside of the case using an extension cable if desired.

1 × DC5521 input
Allows an external DC power source to be connected to the installed power architecture.

1 × DC5521 output
Provides a convenient DC connection for compatible external equipment.

1 × USB-C pass-through
Provides USB-C connectivity between equipment inside and outside the case.

IP67 Field Protection

The LinkPower Plus Multi-WAN uses an IP67-rated rugged enclosure, making it suitable for professional transport and deployment in demanding outdoor environments.

The enclosure provides protection against dust and temporary water immersion when properly closed.

Its compact 430 × 345 × 188 mm format provides significantly more integration space than the LinkPower Mini platform while remaining practical for mobile field deployments.

For more information about battery sizing, DC power and off-grid operation, see our technical guide on powering Starlink antennas with solar panels and batteries.

Modular by Design

The LinkPower Plus Multi-WAN is supplied as the integration case itself.

The following equipment is not included by default:

• Starlink Mini
• Peplink BR1 Mini
• LNK-IMC005 PoE switch
• Gravity 27 PRO power banks

This allows professional customers and system integrators to configure the platform according to their own connectivity, power and networking requirements.

For fleet deployments, custom wiring, networking integrations or project-specific configurations, contact the Sunslice team.

Technical Specifications

Typical Applications

• Telecom field operations
• Emergency and disaster-response communications
• Mobile command posts
• Remote industrial sites
• Security and surveillance systems
• Temporary construction sites
• Broadcasting and media operations
• Scientific expeditions
• Humanitarian deployments
• Off-grid monitoring stations
• Mobile offices and technical field teams
